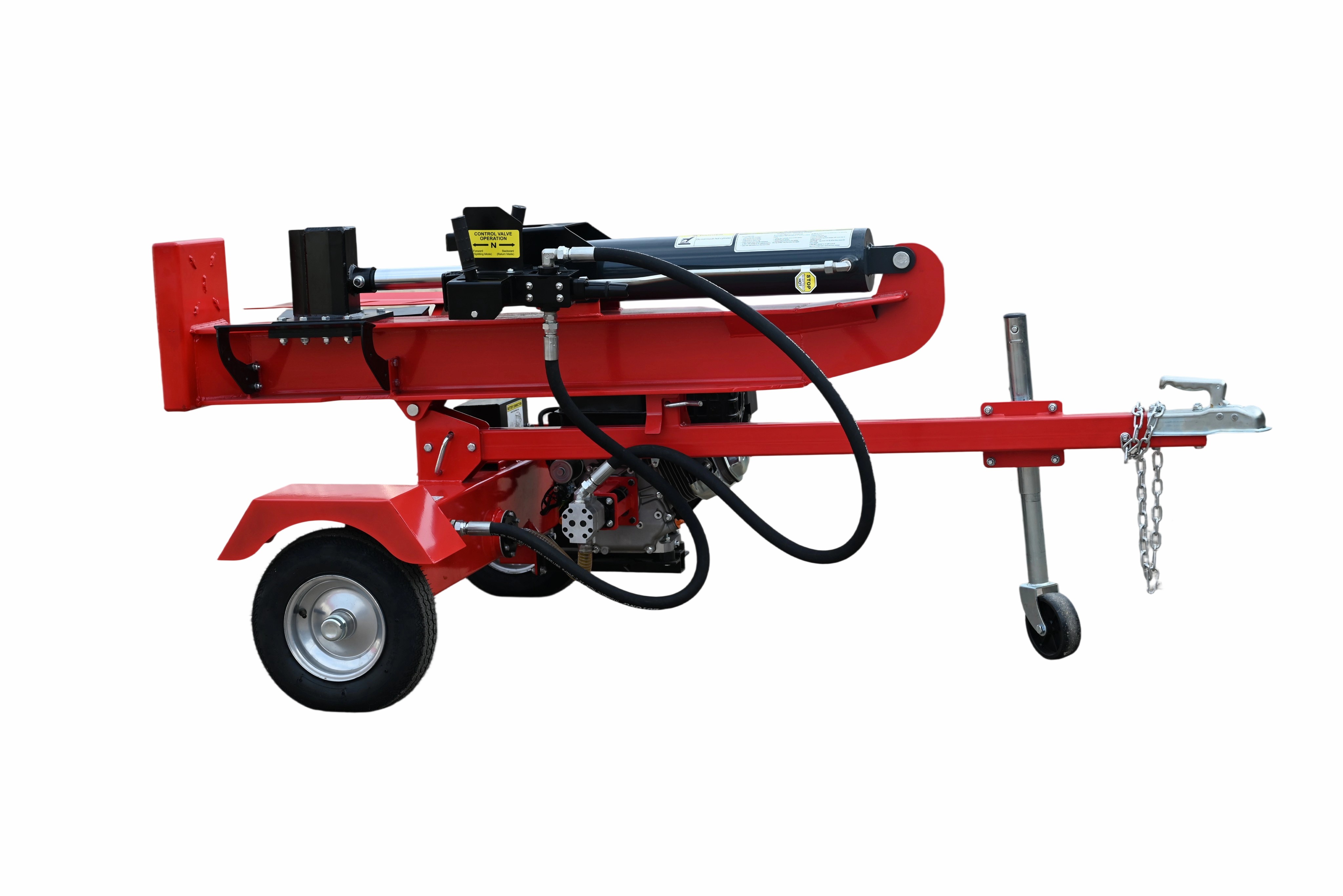

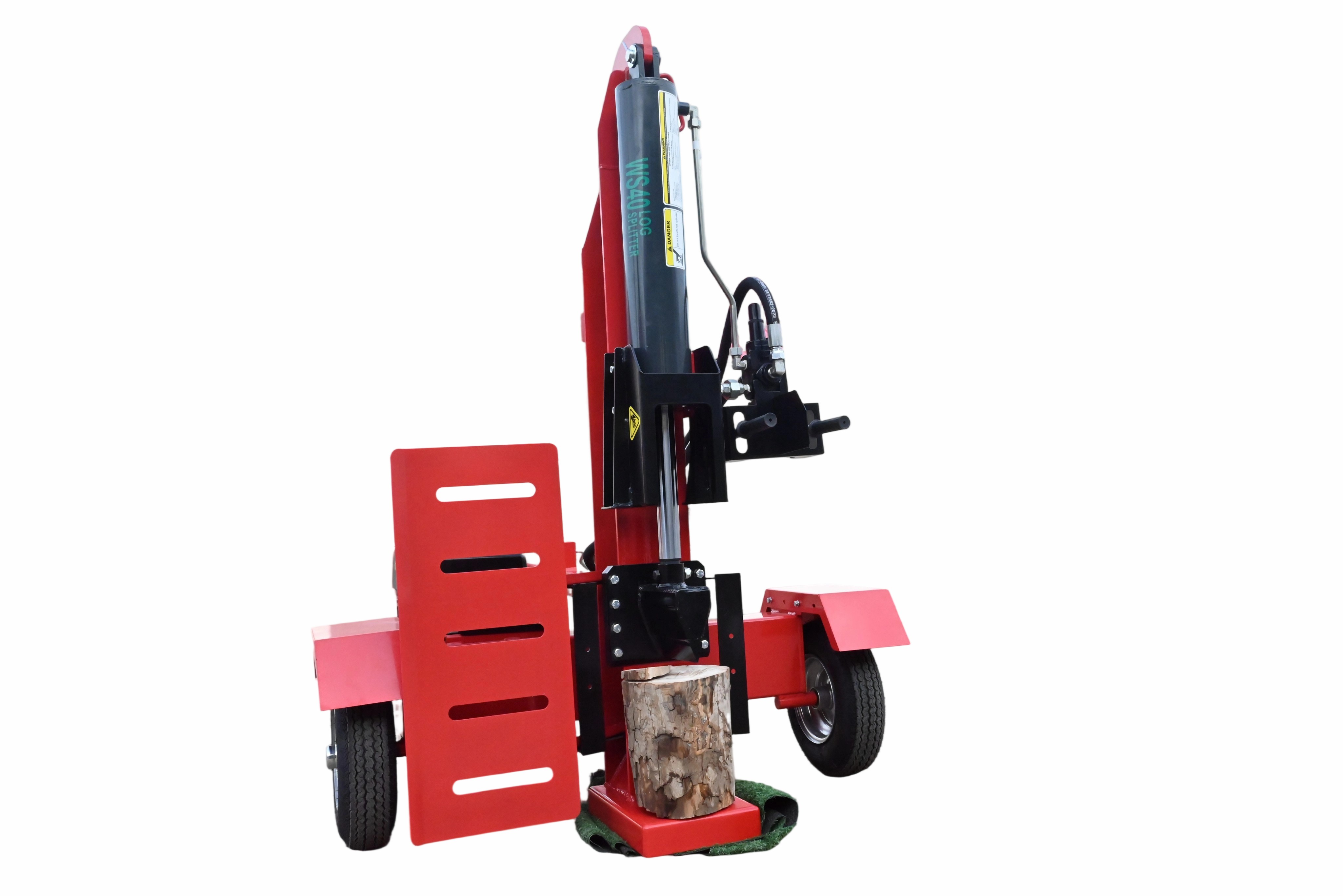

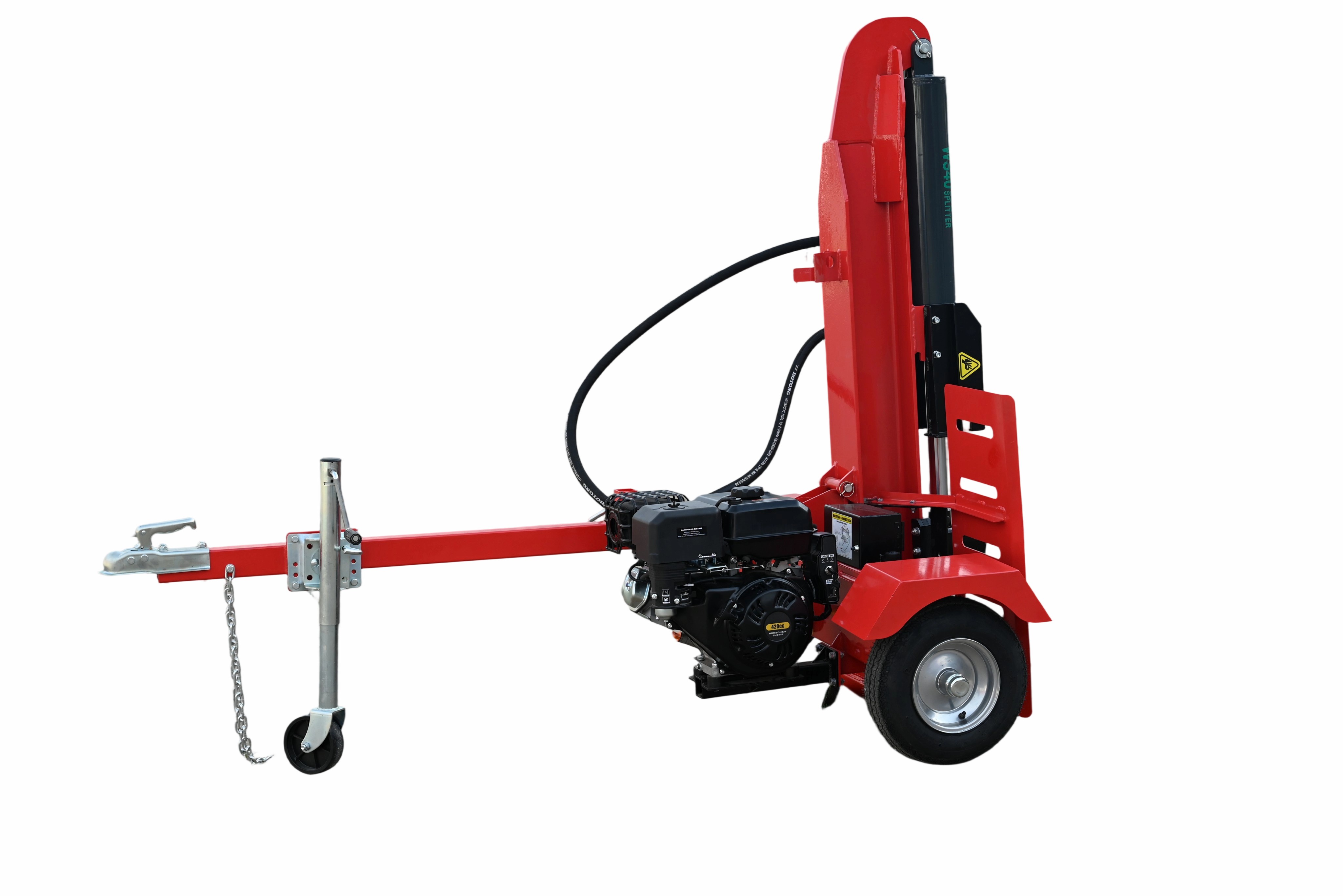

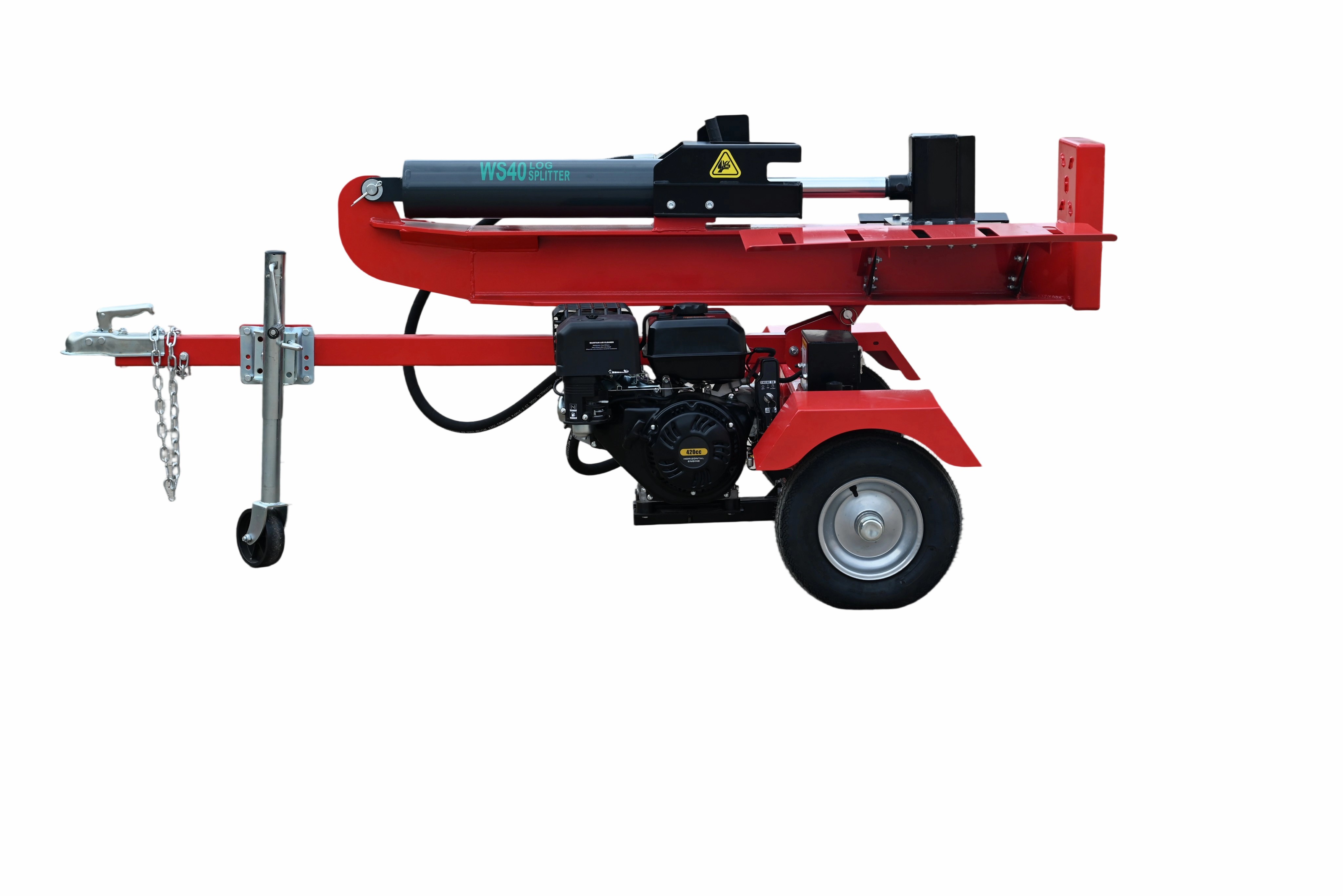

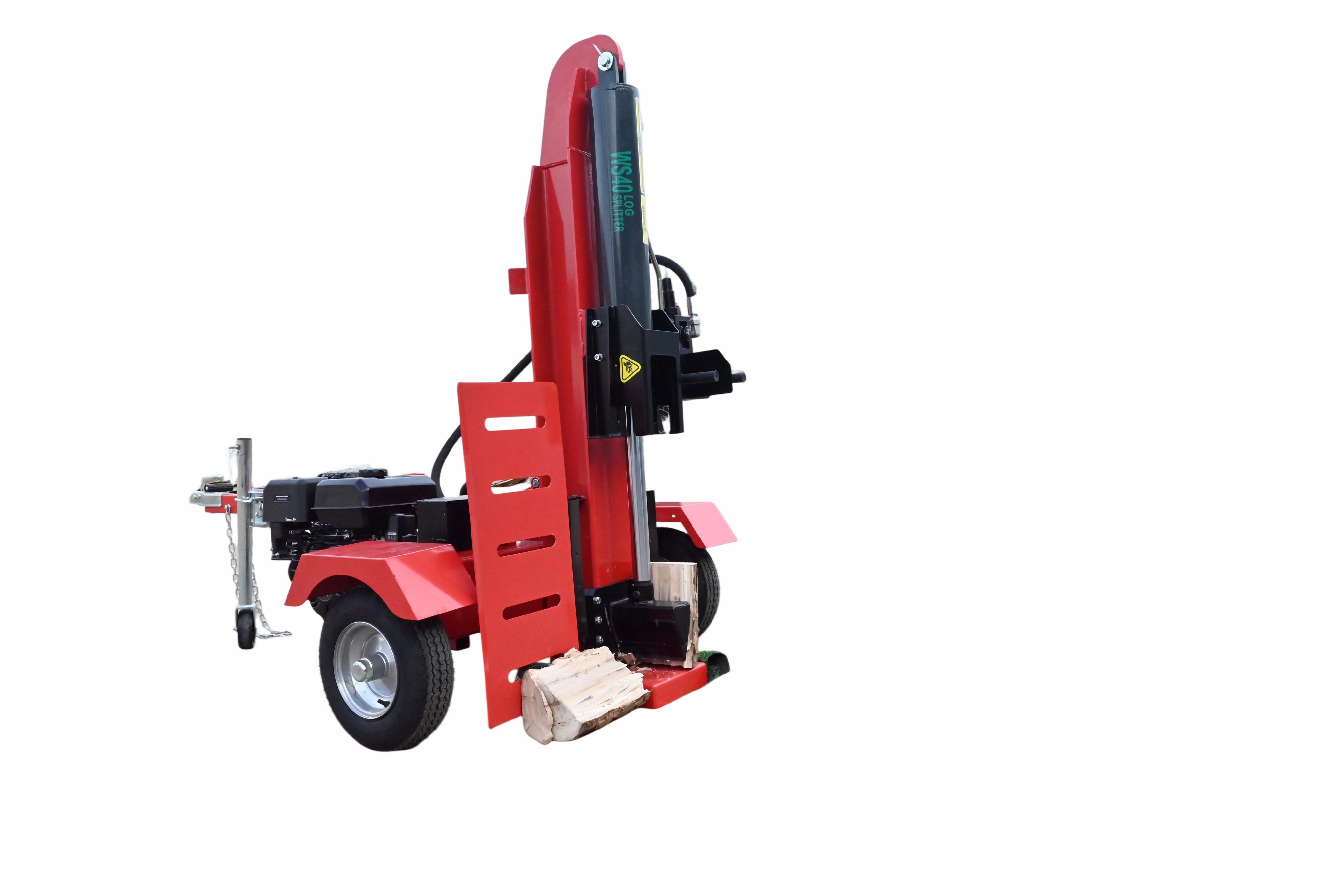

| Model: | WS40 |
| Split Force: | 40t |
| Log Capacity: | 630mm |
| Control valve: | Auto Return with Adjustable Detent |
| Pump Size: | 17 GPM |
| Cylinder inner Diameter: | 5inch |
| Hydraulic Rod Diameter: | 50.8mm |
| Hydraulic Cylinder Stroke: | 602mm |
| Cylinder Cycle Time: | 13.8S |
| Hydraulic Capacity （L） | 27L |
| Fuel Capacity (L) | 6.5L |
| Whether the hydraulic oil is pre filled: | Not Included |
| Size of cleaver: | 200mm |
| Tire: | 4.80-8 |
| Engine: | 15HP |
| Overall dimensions: | 2221×1326×1002 |
| Packing size (mm) | 1890×760×650 |
| 40HQ FCL | 72 |
| Net weight | 274kg |
| Gross weight | 294kg |
