ED500H电动液压自卸车

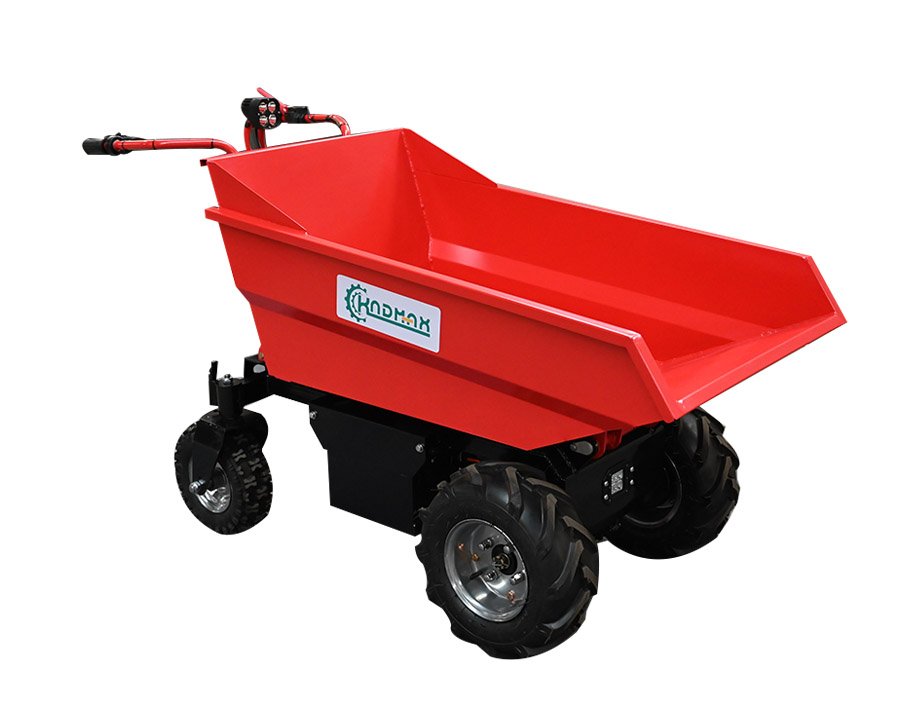

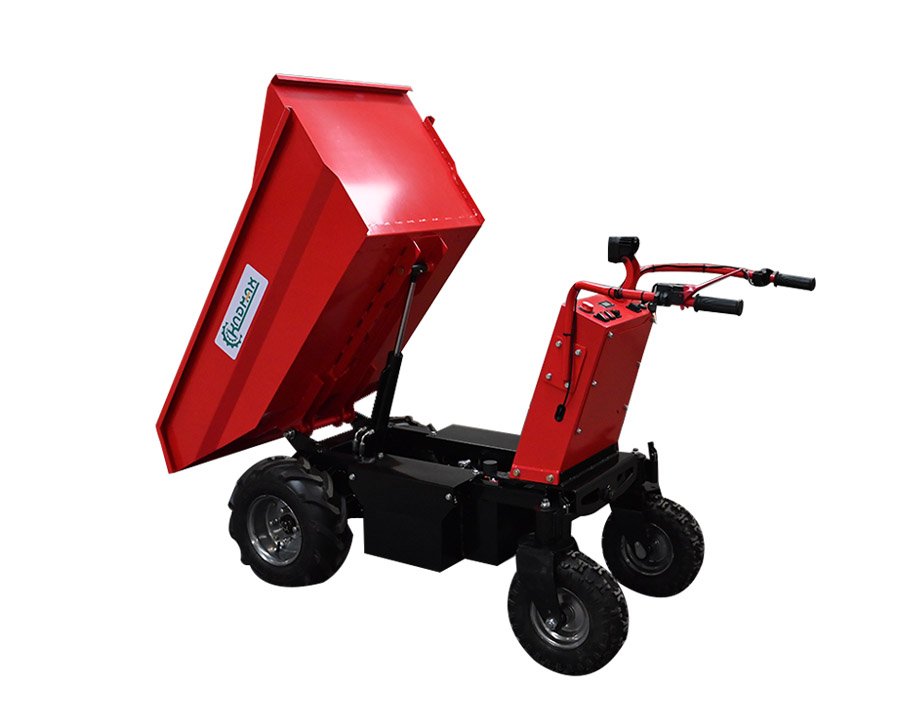

-1_0003_DSC_0032-1_0002_DSC_0033-1_0000_DSC_0037It is a truck designed for carrying bulk materials, usually on construction sites. It carries materials efficiently, ensuring intensive work cycles. The machine occupies a small area and is easy to drag. The operation is simple, and the driving smoothness is good. Electric design allows you to complete the operation work silently and efficiently.


Electric mini dump truck ED500H, equipped with 48v 1000w battery system, this wheelbarrow can provide maximum versatility and light touch operation. The ED500H Mini Dump Truck features an 1100lbs load capacity and hydraulic bucket for use indoors or outdoors, and its compact size will allow passage through doorways/driveways as small as 29in, providing excellent load capacity and productivity.


This mini dump truck has an electromagnetic braking system, which can significantly reduce the wear and tear of the system as there is no need for physical contact to create friction between components. It requires almost no maintenance costs. It has forward and reverse transmission and can be rotated 360 degrees. Convenient to use in narrow areas.


ModelED500H
Battery48V 32Ah lead acid battery
Motor1000W brushless DC motar
Brake SystemElectromagnetic brake
MonitorElectric quantity Voltage
Charging curent4.5A
Lighting Lamp2 (pcs) 30W
Working Time8-10 hours
Charging Time6-7 hours
SpeedTop Speed:0-5.1km/h
Middle Speed:0-4.4km/h
Low Speed:0-2km/h
Reverse speed:0-2km/h
Load Capacity500KG
Tipping methodWelded
WheelFront Wheel 16x6.5-8   Rear wheel13x5.00 6
Bucket Volume238L
Bucket typeWelded
Weight170KG
Overall Size1850*770*1080mm
